From Ethereum address to SQL

Quickly build a Substreams that writes events from a contract to an SQL database.

In this tutorial, you will learn how to bootstrap a Substreams with the Bored Ape Yacht Club contract. You will be going from no code to a fully-fledged environment. You will be able to fill a local SQL database with events emitted on-chain and access from an SQL browser and through GraphQL.
Requirements
1.Substreams CLI: version v1.1.15 or above required, navigate to Installing the Cli​
2.Docker: visit the official installation page​
3.buf.build CLI: visit the official installation page​
4.(Optional) Rust: to better tweak, get your hands dirty and have fun developing Substreams, you need to install Rust. Visit the official Rust installation page​
Generate base Substreams code
Use the substreams init command you scaffold a basic Substreams project.
substreams init
Fetch your api token
You will first need to get a StreamingFast API key from https://app.streamingfast.io. Using this API key, retrieve an API token by using:
export STREAMINGFAST_KEY=server_123123 # Use your own API key
export SUBSTREAMS_API_TOKEN=$(curl https://auth.streamingfast.io/v1/auth/issue -s --data-binary '{"api_key":"'$STREAMINGFAST_KEY'"}' | jq -r .token)
Build your generated Substreams
cd my-bayc/
make build # uses local "Cargo" command or falls back to using docker
# ... Finished release [optimized] target(s) in 34.13s
Test your Substreams
substreams run substreams.yaml db_out --substreams-endpoint mainnet.eth.streamingfast.io:443 --stop-block +1
This is the expected output of your test:
{
  "@module": "db_out",
  "@block": 12287507,
  "@type": "sf.substreams.sink.database.v1.DatabaseChanges",
  "@data": {
    "tableChanges": [
      {
        "table": "ownership_transferreds",
        "pk": "22199329b0aa1aa68902a78e3b32ca327c872fab166c7a2838273de6ad383eba-249",
          ...
          {
            "name": "new_owner",
            "newValue": "aba7161a7fb69c88e16ed9f455ce62b791ee4d03"
          },
          ...
        ]
      }
    ]
  }
}
Note: You can also test your Substreams with the GUI, which is a better debugging tool than the run command. Try:
substreams gui substreams.yaml db_out --substreams-endpoint mainnet.eth.streamingfast.io:443 --stop-block +1
Deploy to a local sink dev environment
Your generated substreams.yaml defines your substreams as an SQL deployable unit with the sink section.
1.Run the serve command in a shell (this is the development server that will create docker containers to run the sink and database)
substreams alpha sink-serve
The previous command will start a daemon that will run in your computer:
2023-10-04T14:31:33.064-0400 INFO (substreams) starting server server
2023-10-04T14:31:33.064-0400 INFO (substreams) grpc server with plain text server
2023-10-04T14:31:33.064-0400 INFO (substreams) launching server {"listen_addr": "localhost:8000"}
2023-10-04T14:31:33.065-0400 INFO (substreams) serving plaintext {"listen_addr": "localhost:8000"}
2.From another shell, deploy your Substreams:
substreams alpha sink-deploy ./substreams.sql.yaml
Note: You can also deploy clickhouse-based substreams by using substreams.clickhouse.yaml, or a substreams-based-subgraph by using substreams.subgraph.yaml
The previous command will deploy your Substreams and send the data to the local PostgreSQL database, providing some information:
Response for deployment "f94fe55c":
Name: my_bayc (v0.1.0)
Output module: db_out (b9e2beff5403fcc89b14622f8224a72a9de27921)
Status: RUNNING ()
Last processed block: 12942000
Services:
  - f94fe55c-pgweb: PGWeb service "f94fe55c-pgweb" available at URL: 'http://localhost:8081'
  - f94fe55c-postgraphile: Postgraphile service "f94fe55c-postgraphile" available at URL: 'http://localhost:3000/graphiql' (API at 'http://localhost:3000/graphql')
  - f94fe55c-postgres: PostgreSQL service "f94fe55c-postgres" available at DSN: 'postgres://dev-node:insecure-change-me-in-prod@localhost:5432/dev-node?sslmode=disable'
  - f94fe55c-sink: Sink service (no exposed port). Use 'substreams alpha sink-info f94fe55c-sink' to see last processed block or 'docker logs f94fe55c-sink' to see the logs.
3.After a few seconds, the command substreams alpha sink-info should give you information about the progress of the sink (ex: Last processed block: 12722000)
4.You can check the logs of the sink and see what's happening: docker logs -f f94fe55c-sink
5.You can explore the different services directly from your browser:
Postgraphile: http://localhost:3000/graphiql
PGWeb: http://localhost:8081/

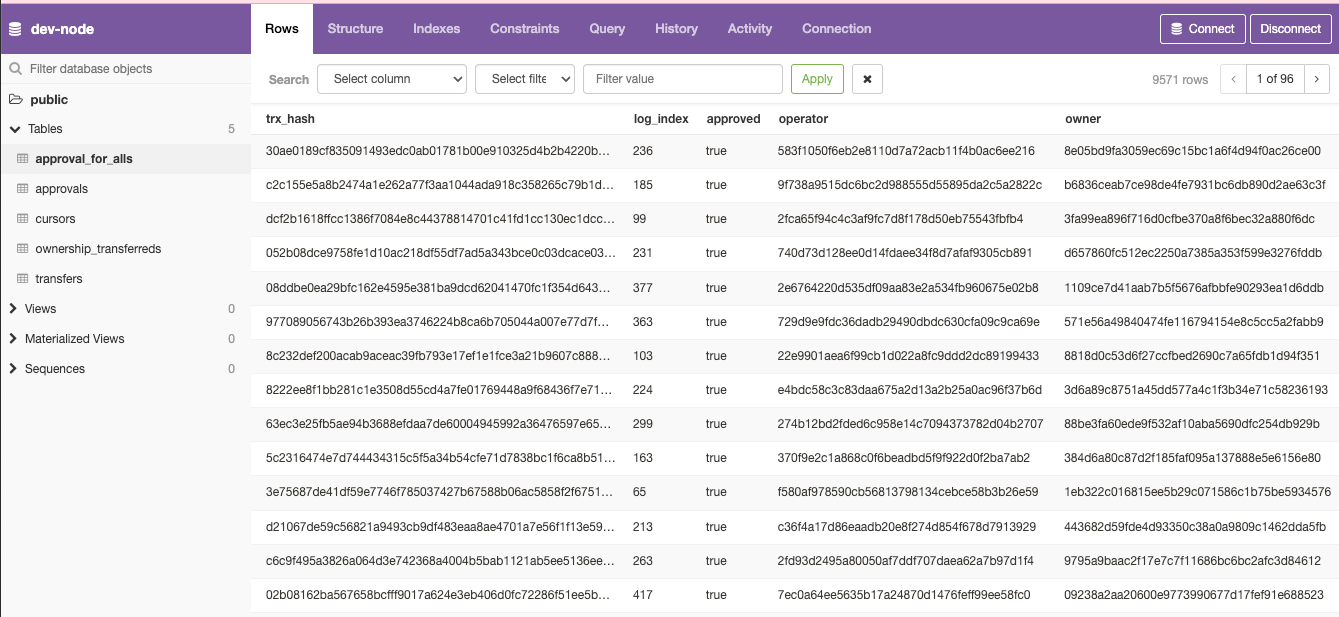

Here is a PGWeb view of events added to Approval For Alls Table
Approval For Alls PGWeb View
Here is the Postgraphile view of the Approval For Alls
Approval For Alls Postgraphile View
